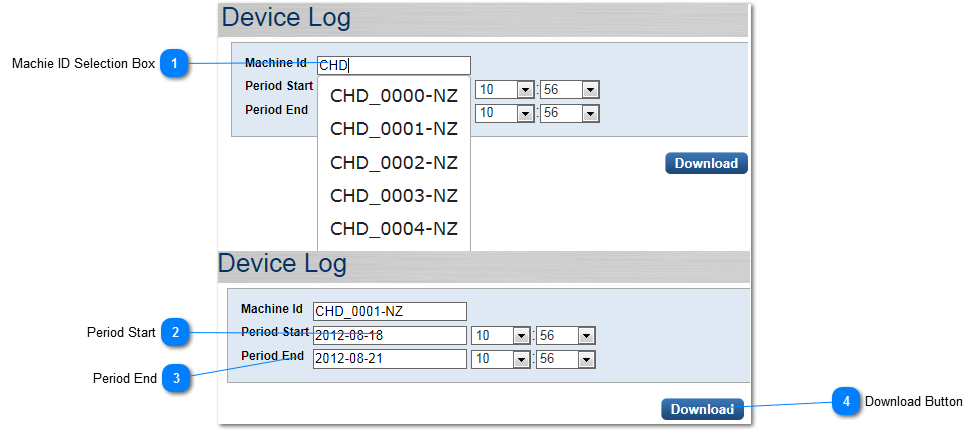

Hold your mouse over any of the numbers below for more information, or click.
This screen allows you to download the raw device logs that contain historical data for any given machine.
Please note that the logs are restricted to 3 days only.
 Machie ID Selection Box
Type in the Machine ID you wish to download data for. As you can see a drop down box will appear as you type the machine ID, allowing quick selection of the Machine in question.
|
|

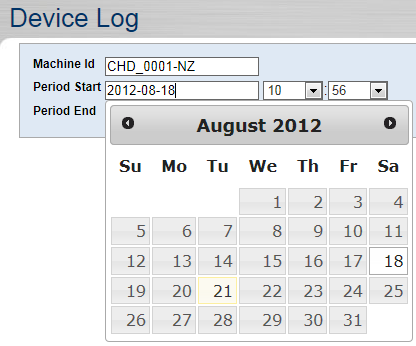

 Period Start
Select the time when you wish the log data to start from. When you click into this box, a popup calendar will appear allowing you to select a date.
You can also select the hours and minutes by using the drop down box for each.
|
|

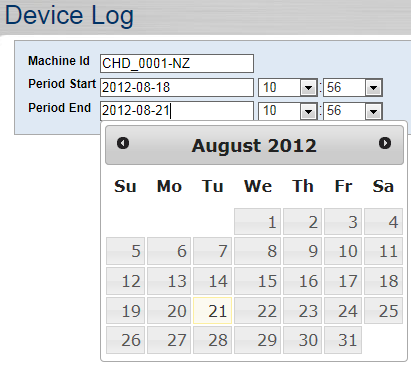

 Period End
Select the time when you wish the log data to finish. When you click into this box, a popup calendar will appear allowing you to select a date.
You can also select the hours and minutes by using the drop down box for each.
|
|
 Download Button
Clicking on this button will allow you to download a text file to your desktop containing the device logs for the specified period.
|
|
